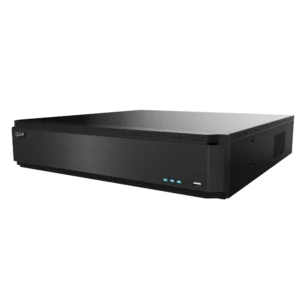

| Model No. |
PLC-1832H8/PM |
| Main Processor Chip |
Cortex A9 |
| Operating System |
Embedded Linux |
| Coding |
Standard H.264 High Profile |
| Local Video Input |
BNC × 32 |
| Input Resolution |
TVI/AHD: 5MP 20fps; 4MP, 3MP, 1080P, 720P, WD1 Real Time; CVI: 1080P, 720P Real Time |
| Network Input / Access Bandwidth |
IPC × 4 / 24Mbps |
| Output |
HDMI × 1: 3840 × 2160 / 1920 × 1080 / 1280 × 1024 / 1024 × 768; HDMI × 1: 1920 × 1080 / 1280 × 1024 / 1024 × 768; VGA × 1: 1920 × 1080 / 1280 × 1024 / 1024 × 768 |
| CVBS |
BNC × 1: CVBS (Used as the Main or Spot Output) |
| Local Audio Input |
RCA × 16 |
| Two-Way Audio |
RCA × 1 |
| Local Audio Output |
RCA × 1 |
| Resolution |
5MP, 4MP, 4MP Lite, 3MP, 1080P, 720P, WD1 |
| Local Record Frame Rate |
5MP: 10fps (PAL/NTSC); 4MP/3MP: 12fps/15fps (PAL/NTSC); 4MP Lite/1080P/720P/WD1: 25fps/30fps (PAL/NTSC) |
| Bit Stream |
768Kbps – 8Mbps |
| Recording Mode |
Manual, Timer, Motion, Sensor |
| Image Quality |
5 Levels |
| Network Resolution |
4MP / 3MP / 1080P / 960P / 720P |
| IPC Record Frame Rate |
25fps (PAL) / 30fps (NTSC) |
| Playback Channel |
16 CH |
| Network Interface |
RJ45 10 / 100 / 1000Mbps × 1 |
| Network Protocol |
TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, ONVIF, GB28181 |
| HDD |
SATA × 8 |
| Maximum HDD Capacity |
8TB |
| USB Backup |
Yes |
| eSATA Backup |
No |
| Alarm Input |
16 |
| Alarm Output |
4 |
| Communication |
RS485 × 2, Connect to PTZ and Keyboard |
| Remote |
Optional |
| USB |
USB 2.0 × 1 (Front Panel), USB 3.0 × 1 (Rear Panel) |
| Computer Case |
2U |
| Dimension (W × D × H) |
430 × 453 × 100 mm |
| Power Supply |
ATX |
| Power Consumption |
≤40W (Without HDD) |
| Working Environment |
-10 ~ 50°C, 10% ~ 90% Humidity |
